STENCIL WIPER ROLLS
The innovative ORDER® SMT stencil wiper roll gives you a unique combination of zero lint, ESD safe and high performance cleaning.
The cleaning process is more efficient meaning your entire surface mount process is more effective. Ultimately this leads to benefits of increased yield and decreased costs.
ORDER® SMT Stencil Wiper Rolls has been designed using advanced materials and manufacturing technologies to challenges of further reductions in aperture size and finer pitch.
ORDER® SMT Stencil Wiper Rolls is the obvious choice for the quality, environmental and cost consciousness electronic manufacturers.
ORDER® SMT Stencil Wiper Rolls is available for all brands of SMT screen printers and can be customized for maximum efficiency.
| Product Name | SMT stencil cleaning wiper roll |
| Suitable Printer brand | DEK,MPM,KME,PANA,SANYO,HITACHI,YAMAHA,TENRYU,FUJI,MINAMI,EKRA,JUKI etc |
| Material | 55%woodpulp+45%polyester (typical),
viscose+polyester, 100% PP, 100% Polyester |

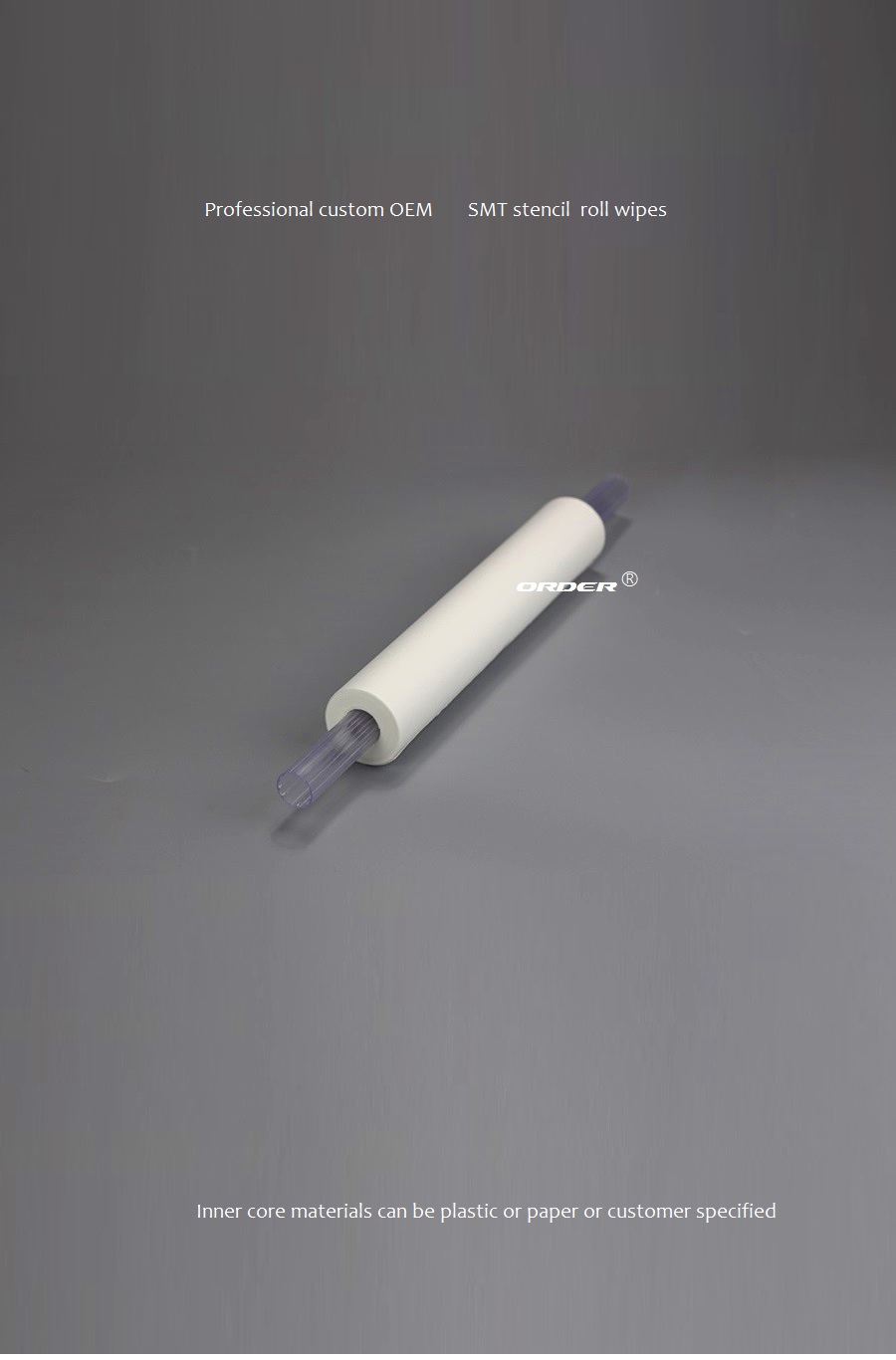

| Core type | Paper core/PVC plastic core |
| Package | 1roll/PE shrinkable film |
| the most impoartant parameter to quote | material composition,fabric width,fabric length, core type,core length,inner diameter of core, if notches needed. |
| Usage | Removing solder paste to clean SMT printer |
|
Feature: 1,High absorbent and exceptional low lint levels. 2, Remove the excess solder paste, adhesive and solvents that can ruin any PCBs. 3,High strength 4,Roll can be customized to suit your exact requirement. |
|
| Printer Drand | Fabric width x Fabric length.(mm x m) | Core ID x Core length(mm) |

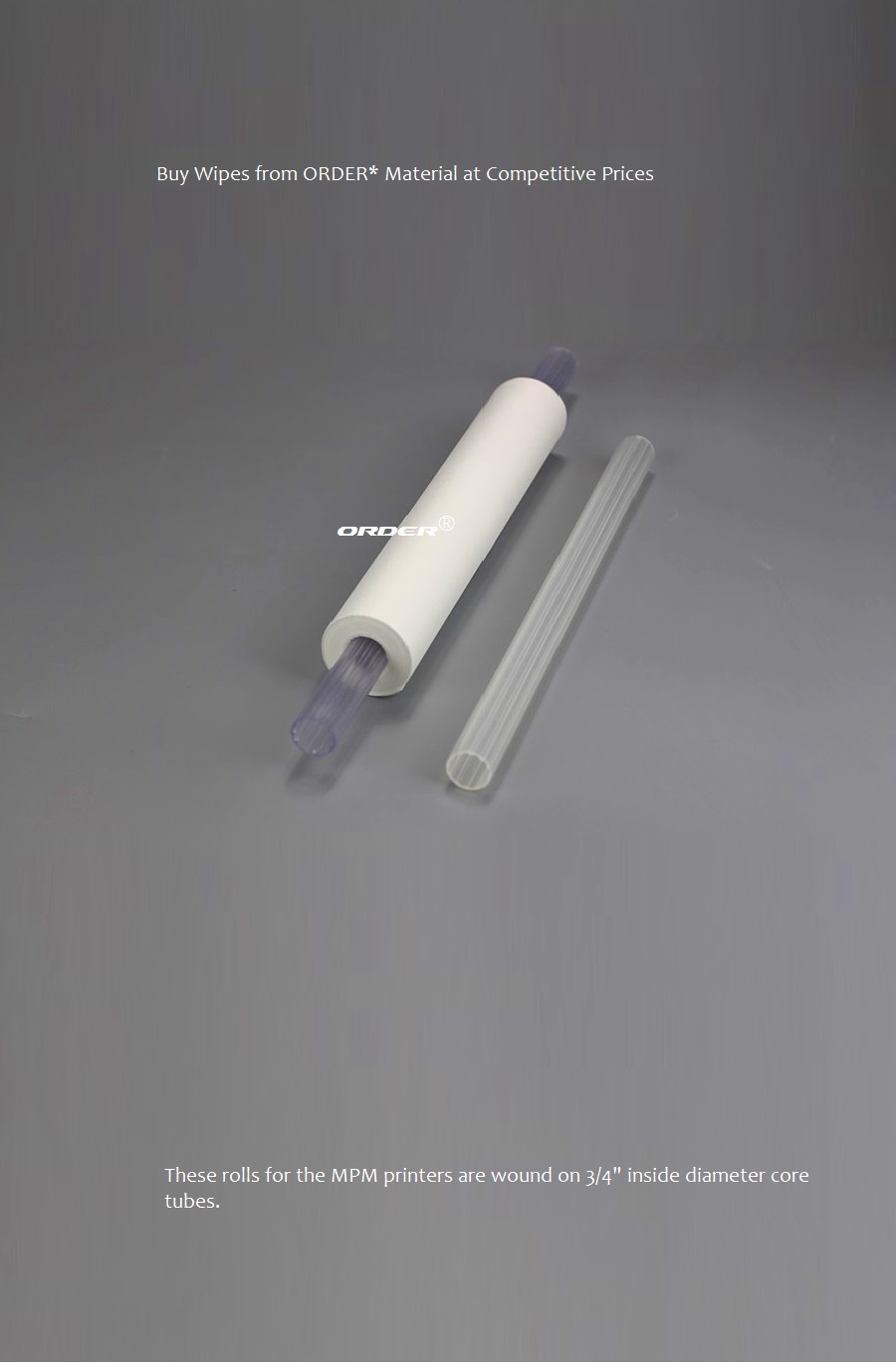

| MPM | 250×10 | 19.5×300 |
| MPM | 300×10 | 19.5×370 |
| MPM | 270×10 | 19.5×455 |
| MPM | 300×10 | 19.5×455 |
| MPM | 400×10 | 19.5×455 |
| MPM | 600×10 | 19.5×610 |
| MPM | 650×10 | 19.5×730 |
| DEK | 270×10 | 19.5×530 |
| DEK | 300×10 | 19.5×530 |
| DEK | 350×10 | 19.5×530 |
| DEK | 400×10 | 19.5×530 |
| DEK | 500×9 | 19.5×530 |
| DEK | 520×10 | 19.5×530 |
| DEK | 700×10 | 19.5×880 |
| DEK | 850×10 | 19.5×885 |
| MINAMI | 270×5 | 8×290 |
| MINAMI | 350×6 | 8×370 |
| KME | 350×30 | 38×350 |
| KME | 270×30 | 38×270 |
| KME | 340×15 | 19.5×350 |
| KME | 480×30 | 38×480 |
| KME | 545×15 | 19.5×545 |
| PANASONIC | 270 x 10 | 38×280 |
| PANASONIC | 360×10 | 38×360 |
| PANASONIC | 350×20 | 38×355 |
| FUJI | 400×11 | 25×400 |
| FUJI | 500×11 | 25×500 |
| PANA | 360×12 | 38×360 |
| PANA | 410×36 | 38×410 |
| YAMAHA | 410×30 | 25.5×420 |
| YAMAHA | 350×10 | 25.5×350 |
| EKRA | 300×8 | 25.5×300 |
| EKRA | 450×8 | 13.5×450 |
| ASKA | 350×8 | 14×450 |
| ASKA | 430×8 | 14×450 |
| SAMSUNG | 400×7 | 20×460 |
Product Features
- SMT Stencil Cleaning Roll are made of 55% wood pulp and 45%polyester
- Production process:spunlace compound technology
- Color: white
- Gram: 68g/sqm, 60g/sqm, 56/sqm
- low lint , no scratch
- High cleaning ability for SMT screen printers
SMT stencil wipes roll SMT steel mesh wiping paper uses natural wood pulp and polyester fiber as raw materials, and is processed by a unique spunlace method to form a unique wood pulp / polyester double-layer structure.
Lint free, anti-static performance. Especially for the electronic factory to remove the printing machine steel mesh, excess solder paste and red glue on the circuit board, keep the circuit board spotless, thereby greatly reducing the scrap rate, greatly improving production efficiency and product quality.
In order for you to improve the work efficiency , save expenses, and effectively control the consumption, our company can customize the appropriate size for you.
It can be used for all automatic printing models such as MPM, DEK, KME, YAMAHA, MINAMI, JUKI, EKRA, PANASERT, FUJI, SANYO, Desen, etc.
For samples or more information please contact us on (+86)17712669618 or e-mail us sunday@order2006.com
We are one of the largest non-woven fabric products manufacturers.
Welcome to visit our factory in China.
All of our products are made according to customers’ requests.
