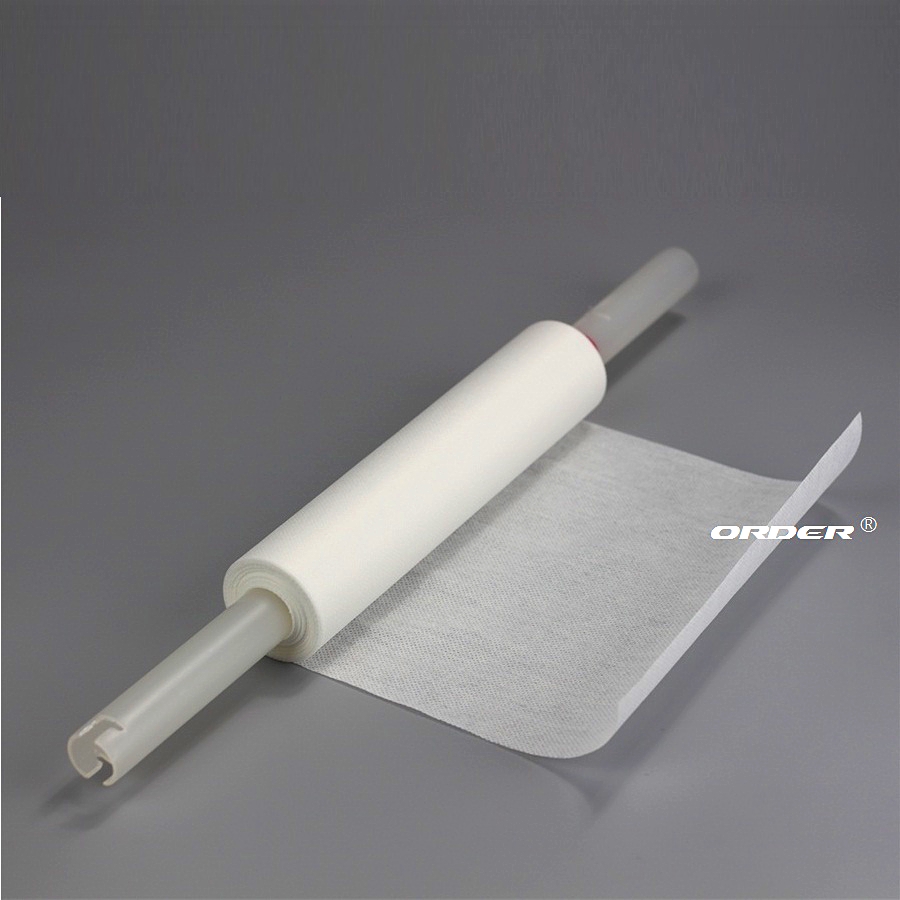

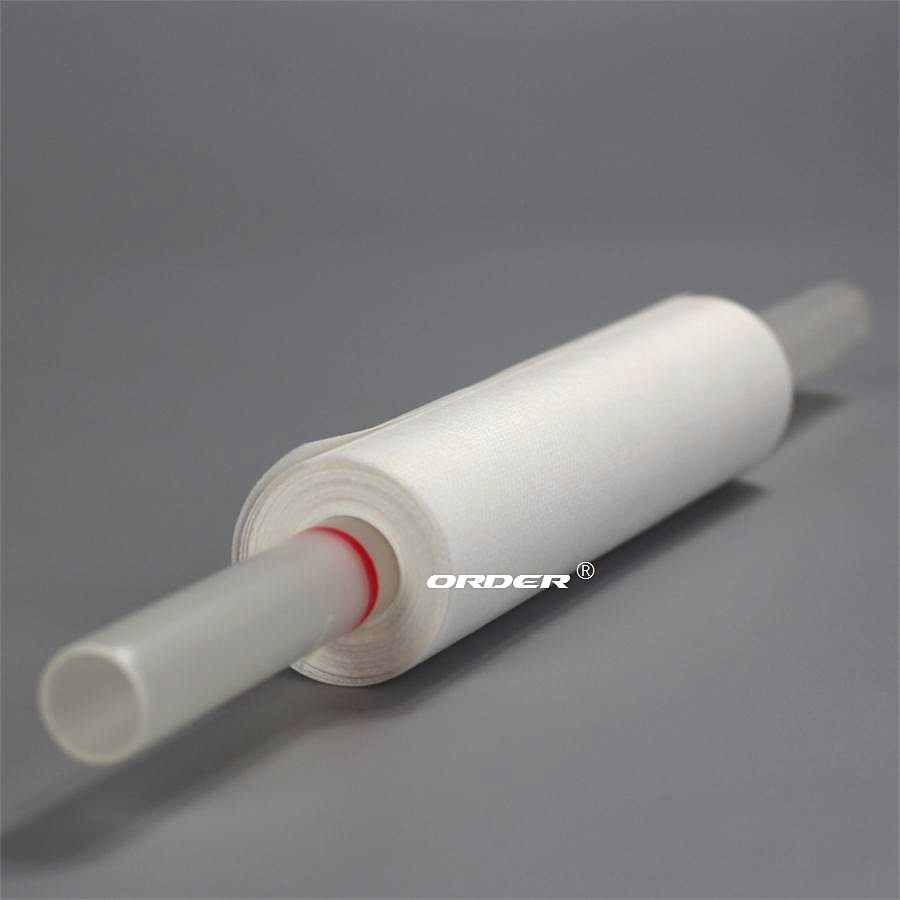

STENCIL WIPER ROLLS

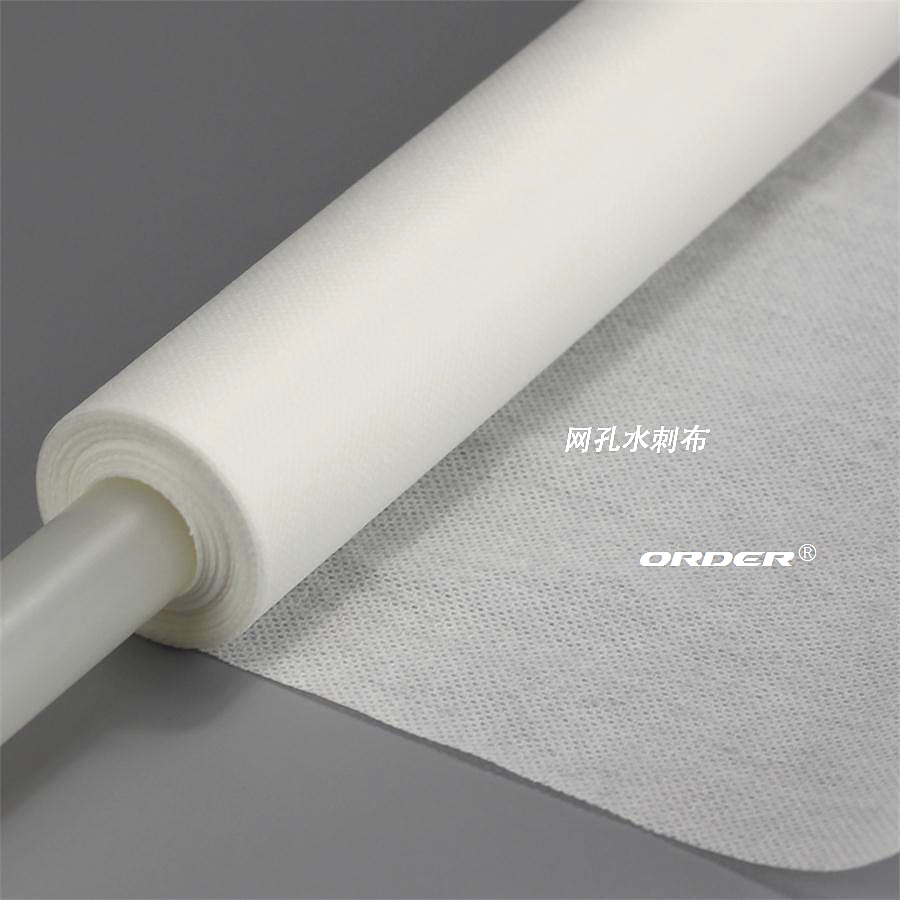

SMT stencil wipes roll SMT steel mesh wiping paper uses natural wood pulp and polyester fiber as raw materials, and is processed by a unique spunlace method to form a unique wood pulp / polyester double-layer structure.
Lint free, anti-static performance. Especially for the electronic factory to remove the printing machine steel mesh, excess solder paste and red glue on the circuit board, keep the circuit board spotless, thereby greatly reducing the scrap rate, greatly improving production efficiency and product quality.
In order for you to improve the work efficiency , save expenses, and effectively control the consumption, our company can customize the appropriate size for you.
It can be used for all automatic printing models such as MPM, DEK, KME, YAMAHA, MINAMI, JUKI, EKRA, PANASERT, FUJI, SANYO, Desen, etc.
| Product Name | SMT stencil cleaning wiper roll |
| Suitable Printer brand | DEK,MPM,KME,PANA,SANYO,HITACHI,YAMAHA,TENRYU,FUJI,MINAMI,EKRA,JUKI etc |
| Material | 55%woodpulp+45%polyester (typical),
viscose+polyester, 100% PP, 100% Polyester |

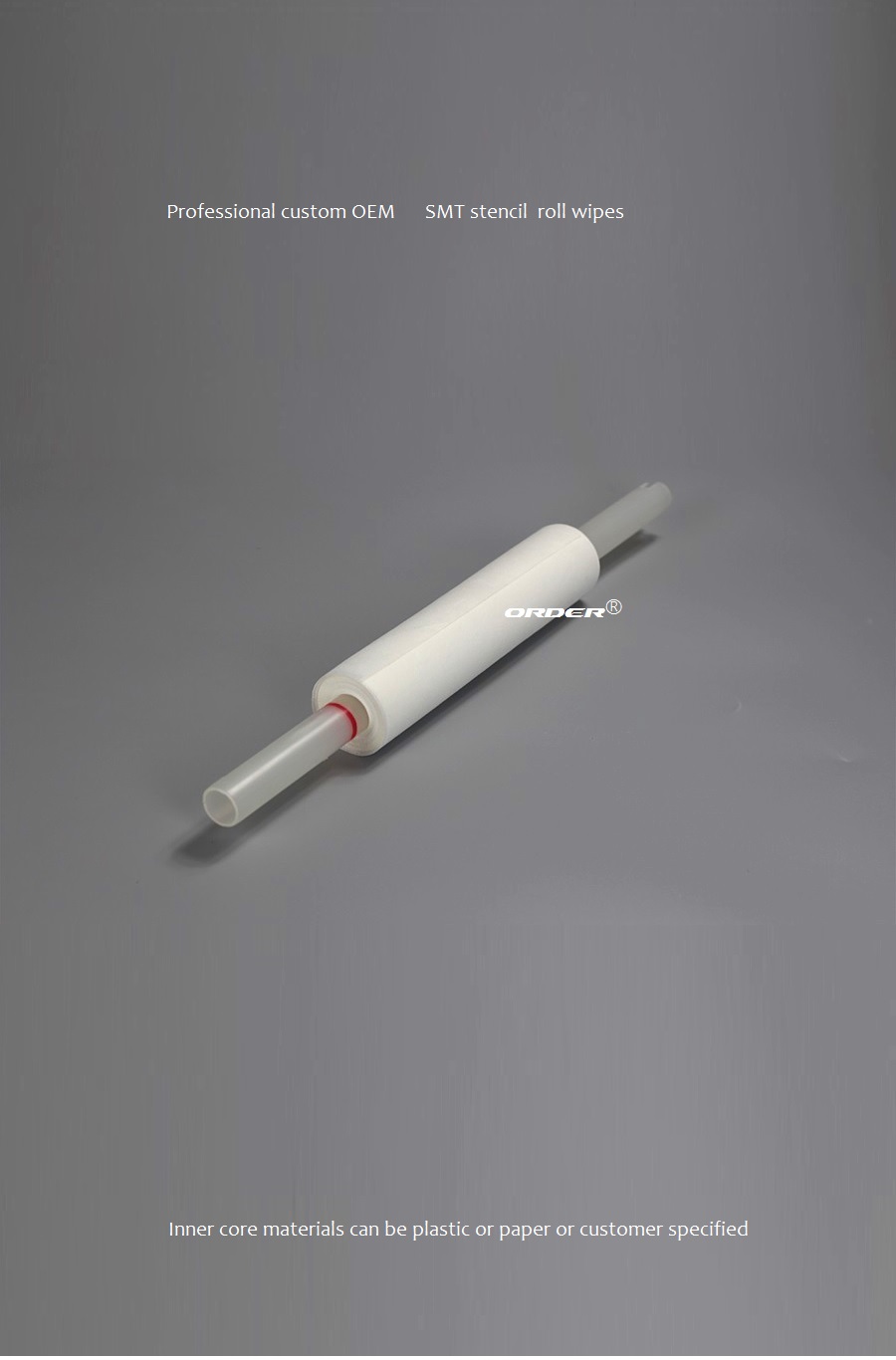

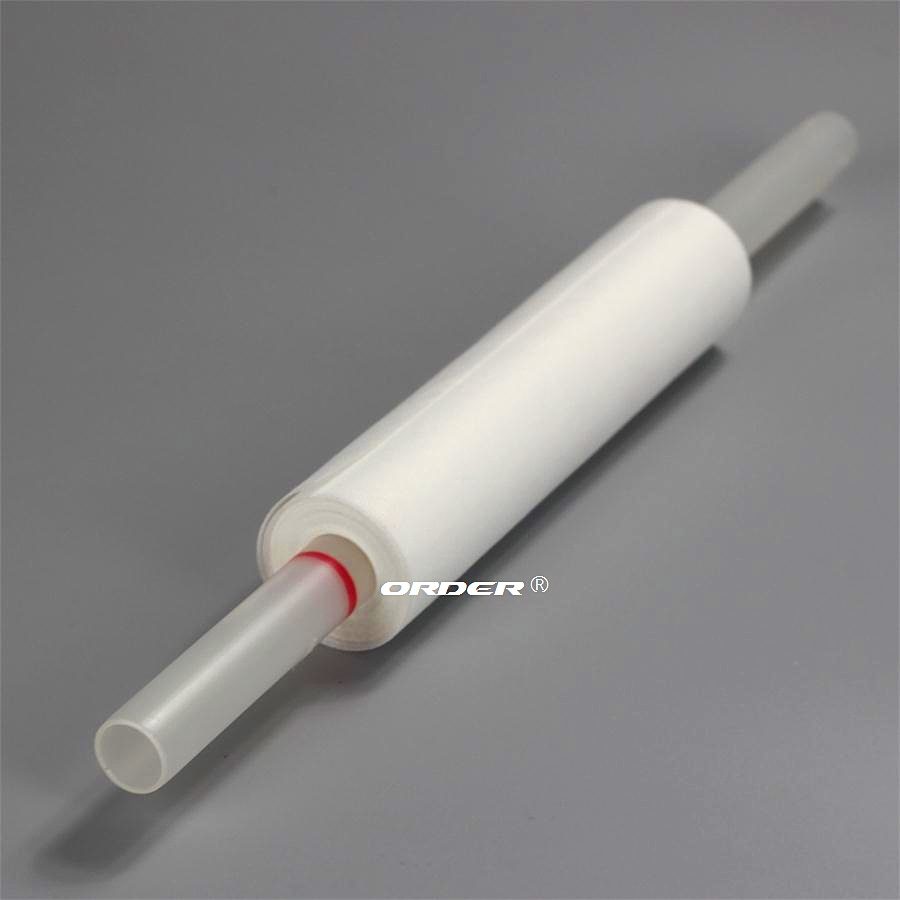

| Core type | Paper core/PVC plastic core |
| Package | 1roll/PE shrinkable film |
| the most impoartant parameter to quote | material composition,fabric width,fabric length, core type,core length,inner diameter of core, if notches needed. |
| Usage | Removing solder paste to clean SMT printer |
|
Feature: 1,High absorbent and exceptional low lint levels. 2, Remove the excess solder paste, adhesive and solvents that can ruin any PCBs. 3,High strength 4,Roll can be customized to suit your exact requirement. |
|
| Printer Drand | Fabric width x Fabric length.(mm x m) | Core ID x Core length(mm) |
| MPM | 250×10 | 19.5×300 |
| MPM | 300×10 | 19.5×370 |
| MPM | 270×10 | 19.5×455 |
| MPM | 300×10 | 19.5×455 |
| MPM | 400×10 | 19.5×455 |
| MPM | 600×10 | 19.5×610 |
| MPM | 650×10 | 19.5×730 |
| DEK | 270×10 | 19.5×530 |
| DEK | 300×10 | 19.5×530 |
| DEK | 350×10 | 19.5×530 |
| DEK | 400×10 | 19.5×530 |
| DEK | 500×9 | 19.5×530 |
| DEK | 520×10 | 19.5×530 |
| DEK | 700×10 | 19.5×880 |
| DEK | 850×10 | 19.5×885 |
| MINAMI | 270×5 | 8×290 |
| MINAMI | 350×6 | 8×370 |
| KME | 350×30 | 38×350 |
| KME | 270×30 | 38×270 |
| KME | 340×15 | 19.5×350 |
| KME | 480×30 | 38×480 |
| KME | 545×15 | 19.5×545 |
| PANASONIC | 270 x 10 | 38×280 |
| PANASONIC | 360×10 | 38×360 |
| PANASONIC | 350×20 | 38×355 |
| FUJI | 400×11 | 25×400 |
| FUJI | 500×11 | 25×500 |
| PANA | 360×12 | 38×360 |
| PANA | 410×36 | 38×410 |
| YAMAHA | 410×30 | 25.5×420 |
| YAMAHA | 350×10 | 25.5×350 |
| EKRA | 300×8 | 25.5×300 |
| EKRA | 450×8 | 13.5×450 |
| ASKA | 350×8 | 14×450 |
| ASKA | 430×8 | 14×450 |
| SAMSUNG | 400×7 | 20×460 |
Description：
* The steel mesh wiper uses US imported material and is made under advanced equipment.
* For removing the paste on the circuit plate and keeping it clean for electronic factory.
* With high water absorption, oil absorption and anti-static property, and without dust falling; the best product for dust and oil removing and wiping.
* With piece packing and rolling packing; available width and length upon customers’ needs.
* Zero lint design - less solder defects ¨
* ESD safe - dissipative fabric and core ¨
* Superior cleaning - engineered for SMT cleaning ¨
* Low solvent consumption - or even use dry ¨
* Easy handling - reduced time to change rolls ¨
* Recyclable as plastic - environmental friendly ¨
* RoHS compatible ¨
* Developed and manufactured in EU ¨
* Available for all SMT stencil printers
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
Customer's Design and Logo are Welcome ,
Competitive Prices ,
In a Variety of Design ,
Small Order Acceptable ,
ODM Accepted ,
OEM Accepted
For samples or more information please contact us on (+86)17712669618 or e-mail us sunday@order2006.com
We are one of the largest non-woven fabric products manufacturers.
Welcome to visit our factory in China.
All of our products are made according to customers’ requests.
Why choose us?
* Put the Quality as the first consideration;
* Rich export experience for more than 20 years in manufacturing and selling wiping & cleaning products.
* OEM & ODM, customized design/logo/brand and packaging are acceptable.
* Advanced production equipments, strict quality testing and control system to make sure superior quality.
* Competitive price: we are a professional wiping & cleaning products manufacturer in China, there is no middleman's profit, you can get the most reasonable price from us.
* Good quality: We have ISO certification, good quality can be guaranteed, it will help you keep the market share well.
* Fast delivery time: we have our own factory with 15 production lines and professional manufacture ,which save your time to discuss with the trade company, we will try our best to meet your request.
Any enquiry, freely contact us.
Contact Us For Pricing
